Installing your ShowerStar on a flexible pipe is quick and easy. You won't need any tools or a plumber—just the zip ties included in your box.
If you'd like to watch a video instruction, please click ShowerStar Installation (Flexible Pipe).
Installation Steps

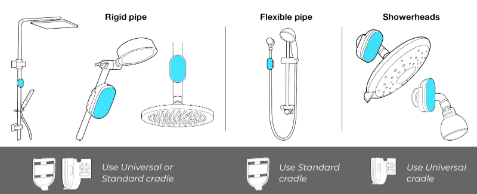

1. Prepare the mounting cradle Select the correct cradle for your shower type. Hold the cradle so the rounded end points down and the flat end faces up.
2. Insert the zip ties Feed the first zip tie into the upper slot on the mounting cradle. Then, insert the second zip tie into the lower slot.
3. Position and secure Place the cradle against the flexible pipe. Wrap both zip ties around the pipe, then insert the pointed end of each tie into its head, one at a time.
4. Tighten to fix in place Pull (ratchet) both zip ties tight. This ensures the mounting cradle is properly fixed and will not slide along the pipe when the shower is running.
 |
Tip: Ensure the fit is snug so the device doesn't move during use.
For more instructions or support materials, visit the TouchGrid Support Page.
