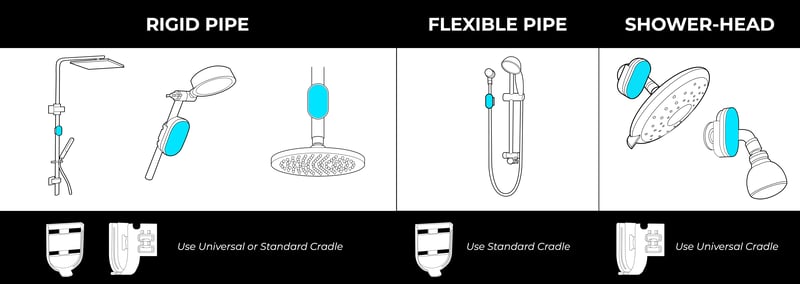

Where do I install the ShowerStar? +
Mount the ShowerStar onto exposed piping or a showerhead. Water should ideally flowing through the pipe / showerhead that the ShowerStar is mounted onto.
Do I need a plumber or electrician to install the ShowerStar? +

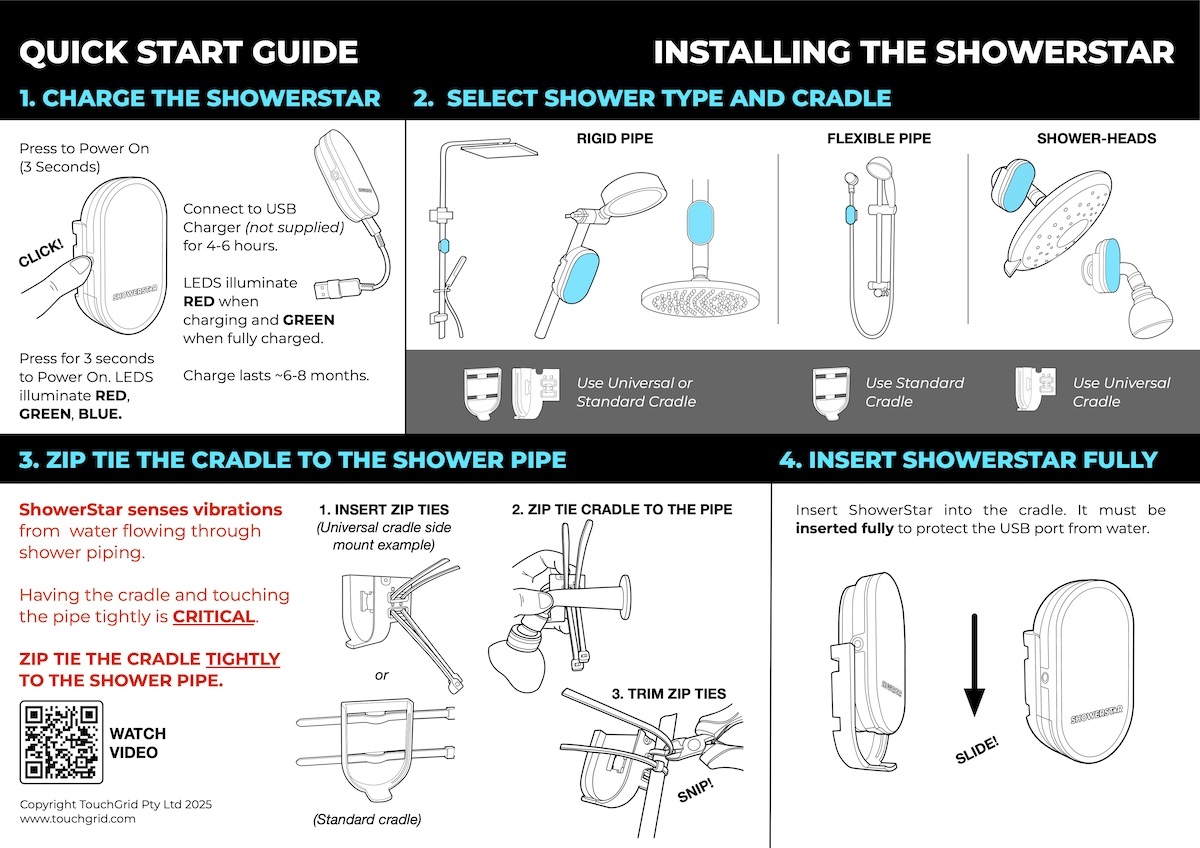

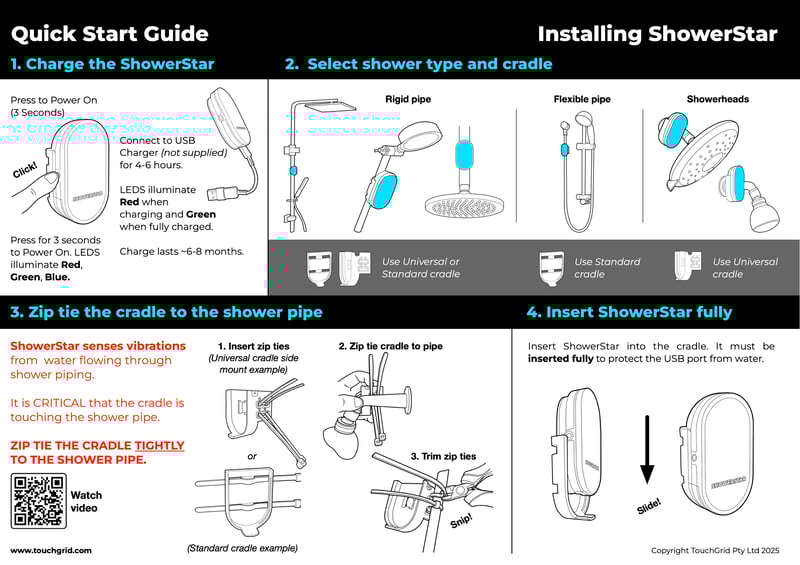

No. The ShowerStar is designed to be a quick DIY install in only a few minutes. Simply mount the mounting cradle using the supplied cable ties onto the shower piping.
How long does it take to install a ShowerStar? +
Typically less than 2 minutes.

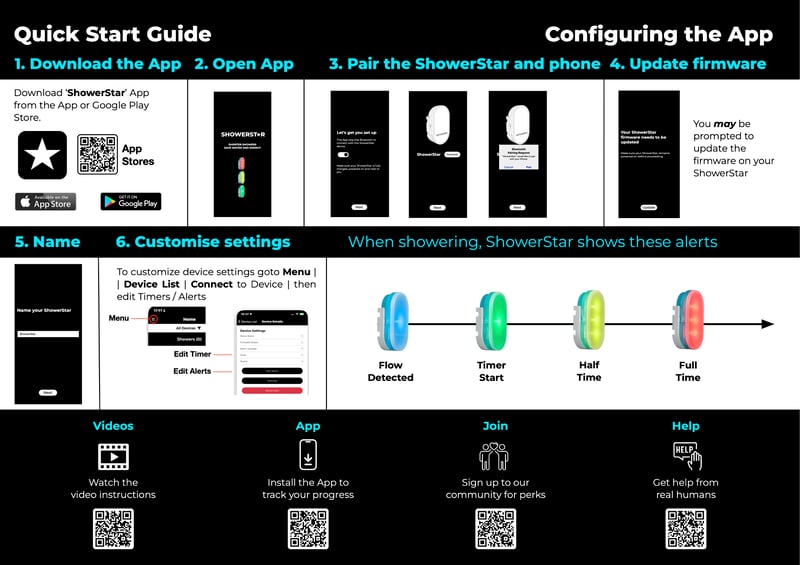

How do I configure a ShowerStar? +
Download the TouchGrid App (iOS or Android) to configure, view usage, analyse costs and forecast savings.
What safety measures are included to minimise the risks with lithium batteries? +
There are a number of ways that the risks with lithium batteries are mitigated:
1. Use of UL , IEC, CB, CE, RoHS, UN38.3 and Reach approved battery.
2. High quality battery vendor that is regularly tested.
3. Battery design includes a battery management system with thermal cutout.
4. Water resistant battery design.
5. USB charging over voltage protection.
6. USB charging over current protection.
7. Water resistant enclosure design along with over-moulded operation button and waterproof USB connector.
8. Full SMT design for fully automated production.
9. Product safety approvals.
10. Regular factory inspections by 3rd party inspectors.
How does the App connect to a ShowerStar? +
The App is installed onto a smartphone and connects via Bluetooth to the ShowerStar. The typical RF range is typically around 10-15 meters.
What is the expected battery life? +
The battery will typically last for ~6-8 months. This depends on a few factors such as how many showers per day, the brightness and number of alerts and how often you connect the App to the ShowerStar.
At least 8 months is a good rule of thumb assuming 4 showers per day. Fewer showers per day and less intrusive alerts will result in longer battery life.
How do you recharge the battery? +
The ShowerStar has a USB Type C connector on the underside. Simply plug in the supplied USB cable and plug it into a standard 5VDC USB charger.The USB charger is not supplied with the ShowerStar. A USB Type C to Type A adaptor is included.
What sort of savings can I expect? +
The typical payback period is 3-6 months, depending on your cost of energy, water and length and frequency of your showers.
Typically larger families with children will have shorter paybacks.
Depending on whether you keep using the ShowerStar diligently a reduction of household energy consumption of ~7% and 15% in water consumption is achievable.
Does the ShowerStar or App collect any personally identifiable data? +
No. The App does not require you to enter your name, email address, mobile phone number or any type of personally identifiable data.
Data that is collected includes location (to determine average incoming water temp), water heater type (gas, electric resistance, heat pump or solar thermal), shower duration.
This data can help utilities and program sponsors verify product has been installed and is being used along with understanding when hot water is used. Hot water use is particularly useful for utilities to design water heater load flex programs that minimise inconvenience to residents.
TROUBLESHOOTING
ShowerStar not sensing water flow. +
1. Ensure you have the latest version of firmware uploaded on the ShowerStar.
2. Ensure the mounting cradle is mounted firmly to the shower or pipe with the cable ties fasten very tightly.
3. Ensure the ShowerStar is fully inserted into the mounting cradle.
4. If the ShowerStar is still not sensing water flow try mounting it in a different location.
The blue led flashes when the shower is not running. +
The ShowerStar works by sensing vibrations on the water piping. Sometimes the piping will vibrate when a shower or tap is running in another part of the house.
This can also be caused by water hammer.

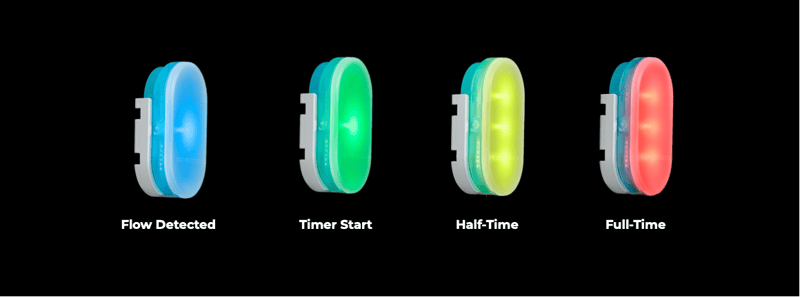

First thing to note is this is not a problem and these events will not be recorded in your shower log. They will only be logged if the LED flashes green - meaning the shower timers has started.
To reduce the blue LED flashing when the shower is not running, adjust the sensitivity of the sensor lower. Go to Device Details / Settings / Sensitivity
Unable to add or pair ShowerStar device. +
1. Ensure ShowerStar is powered on (press and hold operation button for ~3 seconds - LED will flash red, green, blue)
2. Plug SHowerStar into USB power. Press and hold operation button for ~3 seconds. LEDs will flash blue and while flashing blue press the operation button on the ShowerStar. This will remove any pairing / binding to a phone.
3. Remove / forget the device from your mobile phone Bluetooth settings.
4. Try adding and pairing again.
